Model No.: ES-KS01 Kit

Description:

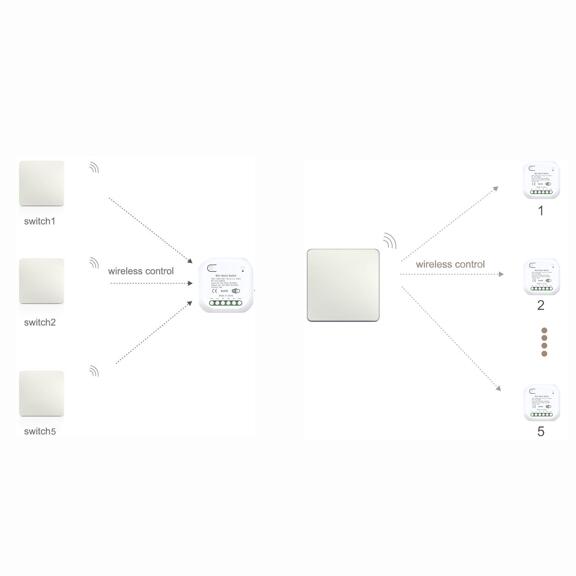

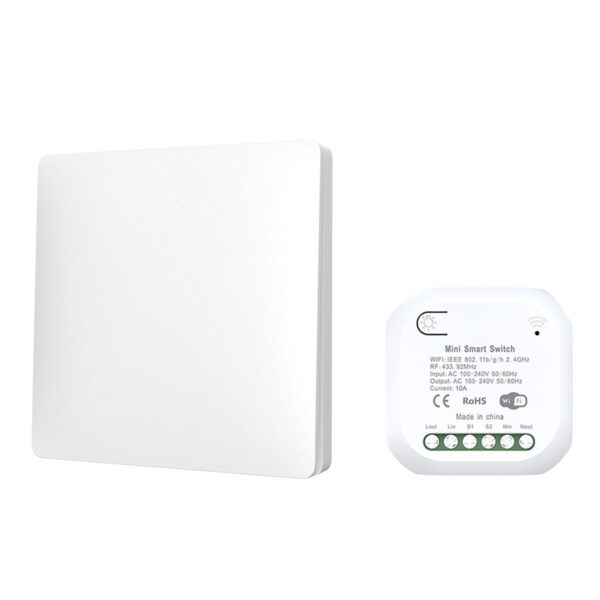

The smart switch kit includes 1 piece of self-powered wall switch and 1 piece of receiver. After pairing, you can use the wall switch to control the receiver.

The self-powered switch uses micro-energy acquisition technology. It can convert your kinetic energy to electric energy when you push the button. No need to use battery or connect with external power. Built-in RF433 module, it can remote control the receiver.

Kinetic Wall Switch Specifications:

Model No.ES-KS01
Number of Keys1
Switch Typepush button
Power Modeself-powered (no battery)
Working FrequencyRF433MHz
Control Distance80m (outdoor); 25m (indoor)
Life Time>100,000 times
Waterproof LevelIP44
Operating Temperature-10℃  – 50℃

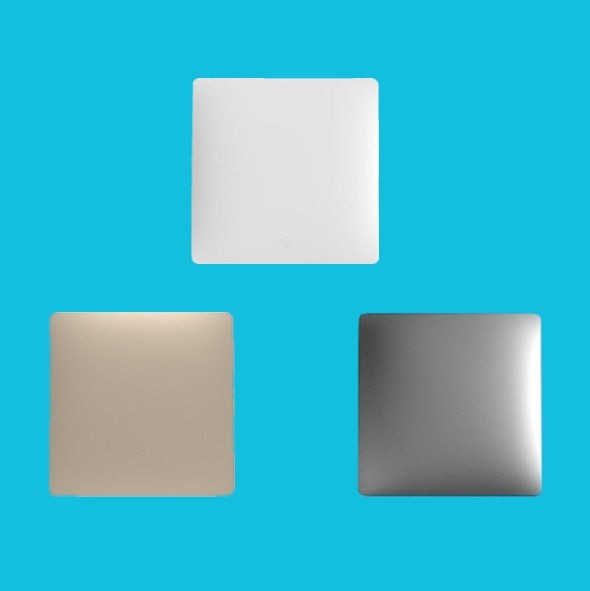

Colorwhite, gray, gold

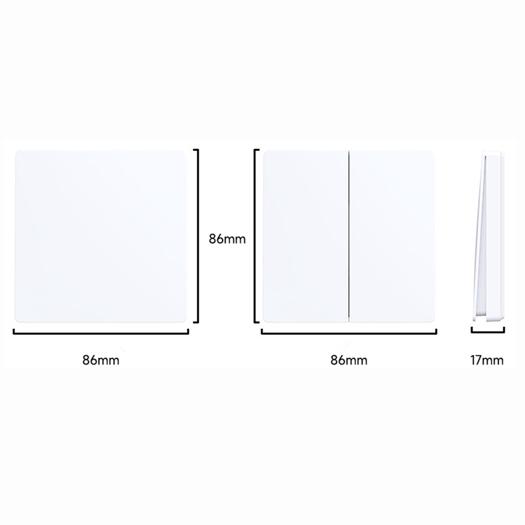

Dimension86(L) x 86(W) x 17(H)mm
Weight0.07kg

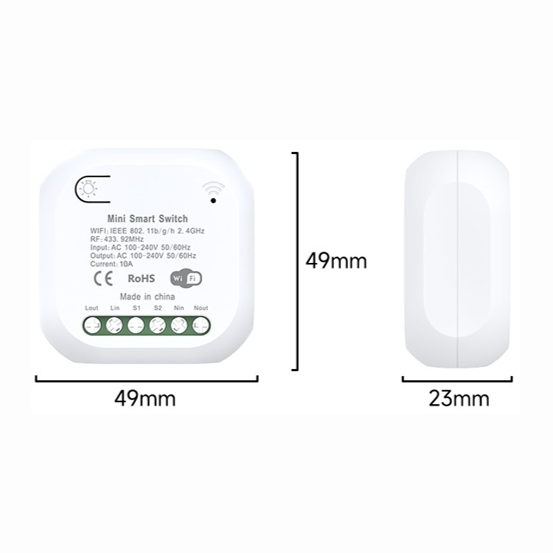

Receiver Specifications:

Model No.ES-WFS06
Input VoltageAC100V-240V
Output VoltageAC100V-240V
Max Current1 channel, 10A
Rated Power2000W/ch
Control Modeon / off
Working FrequencyRF433MHz & Wifi 2.4GHz
Support SystemAndroid / IOS
Color white
Operating temperature-10℃  – 50℃
Weight0.04kg
Dimension49(L) x 49(W) x 23(H)mm
